Configuration screens
ukulib provides multiple ways of easily creating screens to manage your mod's configuration. These screens try to stay as inline as possible with what you can find in the vanilla game, while trying to provide a better API.
Common concepts
Essentially, a config screen is composed of a list of WidgetCreator's. Each one (usually) represents and "wraps" a single value in your configuration, and will display a widget that allows editing the value in the most appropriate manner. ukulib provides a bunch of them already, which should cover the vast majority of cases.
Each WidgetCreator will have a different constructor signature but they all have a few parameters in common:
- a translation key, which should translate to something that describes in a fairly concise manner what the option does (eg.
"betterhurtcam.config.enabled"which translates toHurtcam enabled) - a value, which will serve as the initial value for the widget when the screen is shown (eg.
config.enabledorconfig.isEnabled()) - a setter, usually a lambda for convenience (eg.
(v) -> config.enabled = vorconfig::setEnabled), - (optional) a tooltip, if you have a complicated option and want to display more information. This parameter uses Mojang's
OptionInstance.TooltipFactory, which has a few static methods for most common cases, likenoTooltip()andcachedConstantTooltip(Component).
As an example, creating a simple on/off button:
CyclingOption.ofBoolean(
// this can be anything you want, as long as it's in your translations file
"mymod.option.enableMeowing",
// we don't need a lambda here due to how ukulib works
config.meowingEnabled,
// this is called every time the value is changed
(v) -> config.meowingEnabled = v,
// this parameter can be omitted if you don't need it
OptionInstance.cachedConstantTooltip(Component.translatable("mymod.explanation.meowing"))
);
You can find a list of widgets and their usages on the Widgets page.
Config screen types

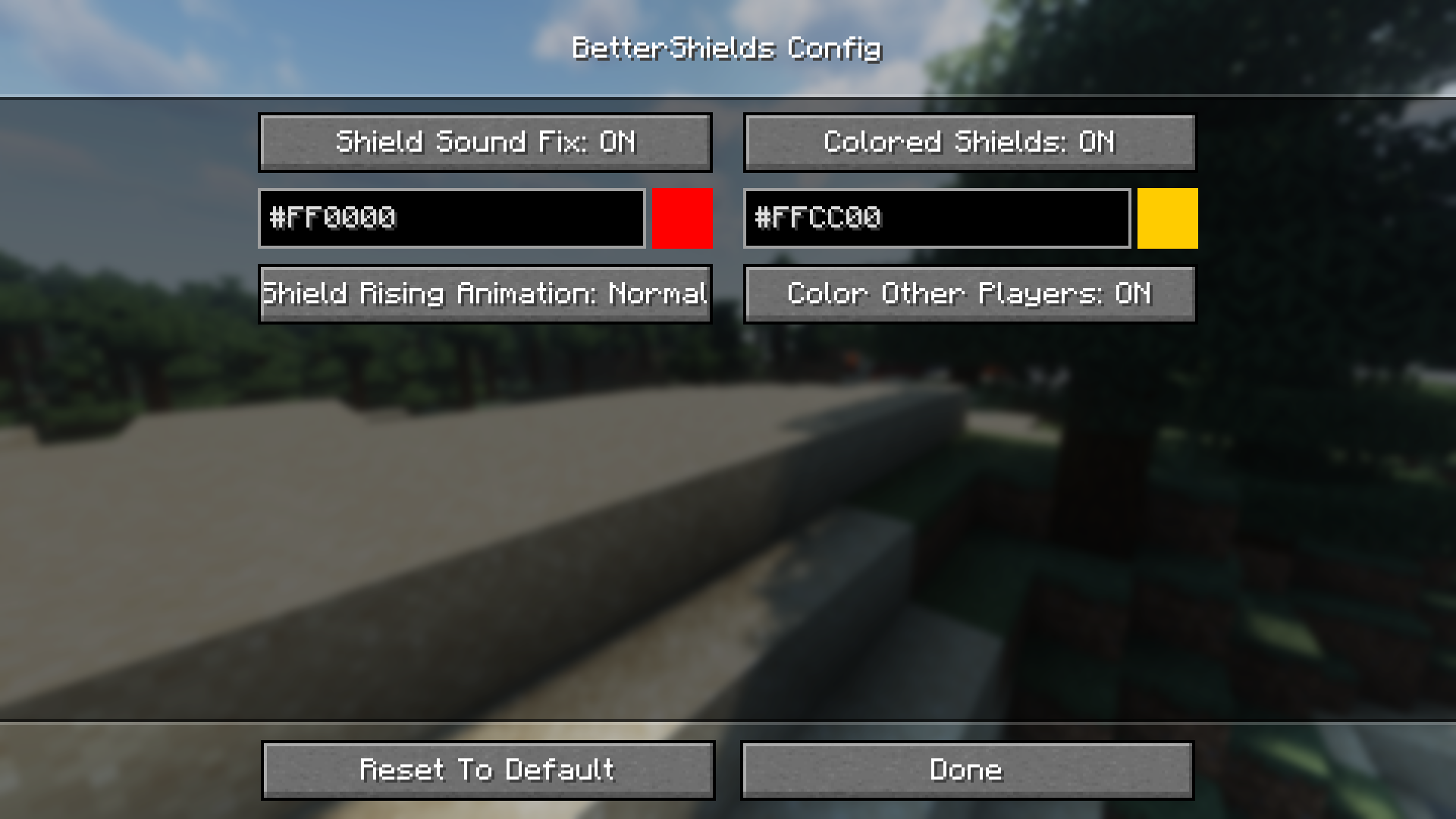

Vanilla-like config screen
AbstractConfigScreen implements a vanilla-like config screen, similar do what you would find in most option screens in-game.
Only a singular constructor and method need to be implemented:
public class MyModConfigScreen extends AbstractConfigScreen<MyModConfig> {
protected MyModConfigScreen(Screen parent) {
super("mymod.config.title", parent, MyMod.getManager());
}
@Override
protected WidgetCreator[] getWidgets(MyModConfig config) {
return new WidgetCreator[]{
CyclingOption.ofBoolean("mymod.option.enableMeowing", config.isMeowingEnabled(), config::setMeowingEnabled),
};
}
}
The constructor takes 3 arguments: a translation key for the screen's title, the parent/previous screen, and a config manager. getWidgets supplies you with an instance of your config, to avoid having to repeatedly call the manager and to make the function "pure".

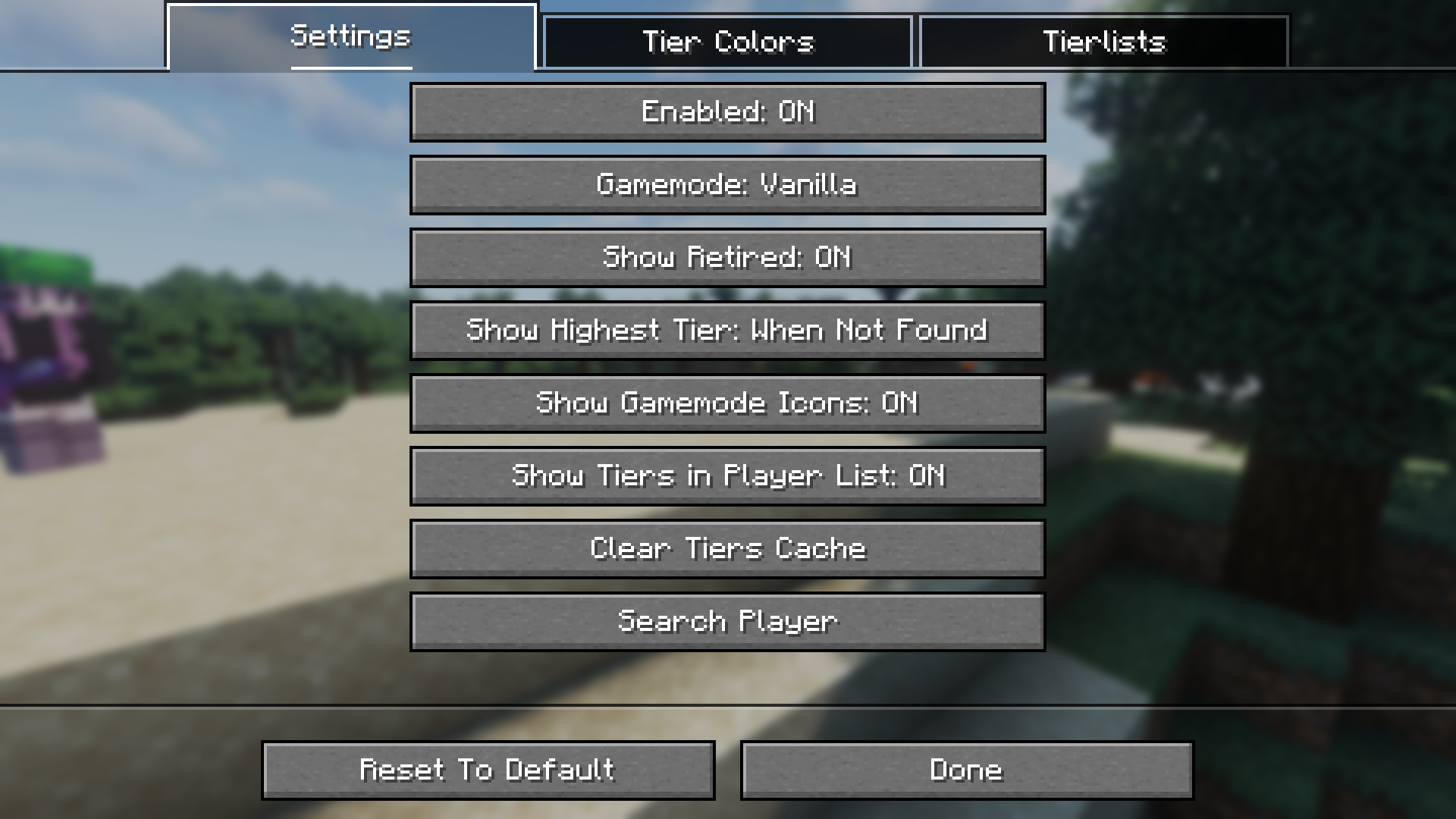

Tabbed config screen
TabbedConfigScreen implements a config screen with mutliple tabs, similar to the world creation screen. Using it is a bit more cumbersome, as you'll need to create classes extending ButtonTab.
Tip
TabbedConfigScreen accepts any class that extends Minecraft's Tab, which means you can make your own more complex tabs and integrate them with the rest of the config screen seamlessly!
public class MyModConfigScreen extends TabbedConfigScreen<MyModConfig> {
public MyModConfigScreen(Screen parent) {
super("mymod.config.title", parent, TotemCounter.getManager());
}
@Override
protected Tab[] getTabs(MyModConfig config) {
return new Tab[]{ new TabOne(), new TabTwo() };
}
public class TabOne extends ButtonTab<MyModConfig> {
public TabOne() {
super("mymod.config.tabOne", MyModConfigScreen.this.manager);
}
@Override
public WidgetCreator[] getWidgets(MyModConfig config) {
return new WidgetCreator[]{ /* ... */ };
}
}
public class TabTwo extends ButtonTab<MyModConfig> {
public TabTwo() {
super("mymod.config.tabTwo", MyModConfigScreen.this.manager);
}
@Override
public WidgetCreator[] getWidgets(MyModConfig config) {
return new WidgetCreator[]{ /* ... */ };
}
}
}
Displaying the screen
Every ukulib config screen class extends Minecraft's Screen, so you can just add a button somewhere into the screen of your choice and call Minecraft.getMinecraft().setScreen(new MyModConfigScreen(parent)).
However, for convenience's sake, ukulib provides methods to access the config screens easily, either via the "uku button" or your platform's native1 configuration implementation.
Integrating your config screen is very straightforward: just implement UkulibAPI.
import net.uku3lig.ukulib.api.UkulibAPI;
public class UkulibIntegration implements UkulibAPI {
@Override
public UnaryOperator<Screen> supplyConfigScreen() {
return (parent) -> new MyModConfigScreen(parent, /* other params if needed */); // (1)!
}
}
- We use a lambda that provides the parent screen to ensure that when the user presses "Done" or Esc, we go back to the screen they were previously on.
Next, we need to tell ukulib that the integration class is available, which is done differently depending on the platform.
In your fabric.mod.json, add your class to the list of ukulib entrypoints:
{
"entrypoints": {
"ukulib": ["org.example.yourmod.UkulibIntegration"]
}
}
In your mod class, register your integration class as an extension point:
import net.uku3lig.ukulib.neoforge.UkulibNFProvider;
@Mod(value = "mymod", dist = Dist.CLIENT)
public class MyModNeoForge {
public MyModNeoForge(ModContainer container) {
container.registerExtensionPoint(UkulibNFProvider.class, UkulibIntegration::new);
}
}
Note
You may notice that we are using a separate UkulibNFProvider class here and using a lambda instead of just instantiating UkulibIntegration: this is due to NeoForge requiring extension points to implement IExtensionPoint, which is not available in the platform-independent code of ukulib, where UkulibAPI resides.
And that's it! Your mod should now appear in the list of ukulib mods and its config screen should be accessible via Mod Menu/NeoForge's mod list!
