Widgets

You can find a list of all the available widgets in the javadoc. Most stuff should be self-explanatory thanks to the already existing javadoc comments; this page details more complex use cases and widgets.

CyclingOption

CyclingOption is one of the more complex widget types due to the multitude of ways it can be used in. The three main usages are:

• A boolean toggle: this is the simplest one, they are constructed with the ofBoolean methods and just take in the "usual" parameters.
• Choosing an enum value: this (obviously) only works with actual enums, so that the values can be fetched automatically, you therefore have to pass the class of your enum and (optionally) a function that converts enum variants to human-friendly text. Constructed using ofEnum.
• Choosing an generic object: the most generic of the three, takes in a list of T and makes the "value-to-text" function mandatory. Constructed via the class constructor.

Tip

Creating a "value-to-text" function can be cumbersome and annoying for most use cases, which is why CyclingOption also provides ofTranslatableEnum and ofTranslatable (for generic objects) functions. These require your items to implement StringTranslatable, which associates each value with an internal string identifier and a translation key.

Example:

@Getter
@AllArgsConstructor // (1)!
public enum OffhandSlotBehavior implements StringTranslatable {
    ALWAYS_IGNORE("always_ignore", "armorhud.option.alwaysIgnore"),
    ADHERE("adhere", "armorhud.option.adhere"),
    ALWAYS_LEAVE_SPACE("always_leave_space", "armorhud.option.alwaysLeaveSpace");

    private final String name;
    private final String translationKey;
}

1. I use Lombok here which helps writing less boilerplate; this example would work perfectly fine by writing the constructor and overriding the methods by hand.

InputOption and validation

ukulib provides a few widgets for text input, namely InputOption. It's fairly simple at its core, taking in a translation key, an initial value and a setter.

However, its behavior can be fine-tuned with two more options: maxLength (self-explanatory) and a validator. This validator is a function that takes in the current value of the input and returns a boolean, true if the value is valid. This allows for check for virtually anything, eg. if the value is alphanumeric, if it's a valid UUID, etc.

Having a validation function set will prevent the user from saving their changes to the config if the value they put in is invalid, by disabling the "Done" button and showing a tooltip indicating what's wrong. (Note: it currently isn't possible to customize the message displayed in the tooltip). The screen can also be forcibly exited by pressing Esc, but modifications will not be saved.

Validated InputOption example

new InputOption(
    // usual options: translation key, initial value, setter
    "mymod.config.playerName",
    config.getPlayerName(),
    config::setPlayerName,
    // this is the validator function, string -> boolean
    // in this example we check that the string is alphanumeric (including dashes and underscores)
    value -> value.toLowerCase(Locale.ROOT).matches("[a-z0-9_-]+"),
    // this is the maximum length of the string
    // it's automatically checked by ukulib so no need to include it in the above function
    16
);

TypedInputOption

Sometimes the only type of widget for your need is a text input box, but the value you want to be configurable is not a string. This is where TypedInputOption comes in, which allows you to easily convert between a value and its string representation.

It takes the same arguments as InputOption, except for an additional parameter: a function converting a string to an Optional<T>. The optional should be empty if the conversion fails. Furthermore, the initialValue parameter is a string, to force the developer to handle the T -> String conversion; the simplest way is to use #!String.valueOf().

TypedInputOption example

private Optional<Integer> convert(String value) {
    try {
        return Optional.of(Integer.parseInt(value));
    } catch (Exception e) {
        return Optional.empty();
    }
}

// ...

new TypedInputOption<Integer>(
    "mymod.config.maxCount",
    // the value is just an integer, so the default string representation suffices
    String.valueOf(config.getMaxCount()),
    config::setMaxCount,
    // conversion function
    s -> convert(s),
    // you can still use a validator! instead of a string, the function will validate the converted value directly
    v -> v > 0
);

Interactive position selection

When making a client-side mod with HUD/UI elements, it may sometimes be desirable to make that element have its position be configurable. You can always use the more "traditional" method of having a Position enum or let the user enter coordinates by hand.

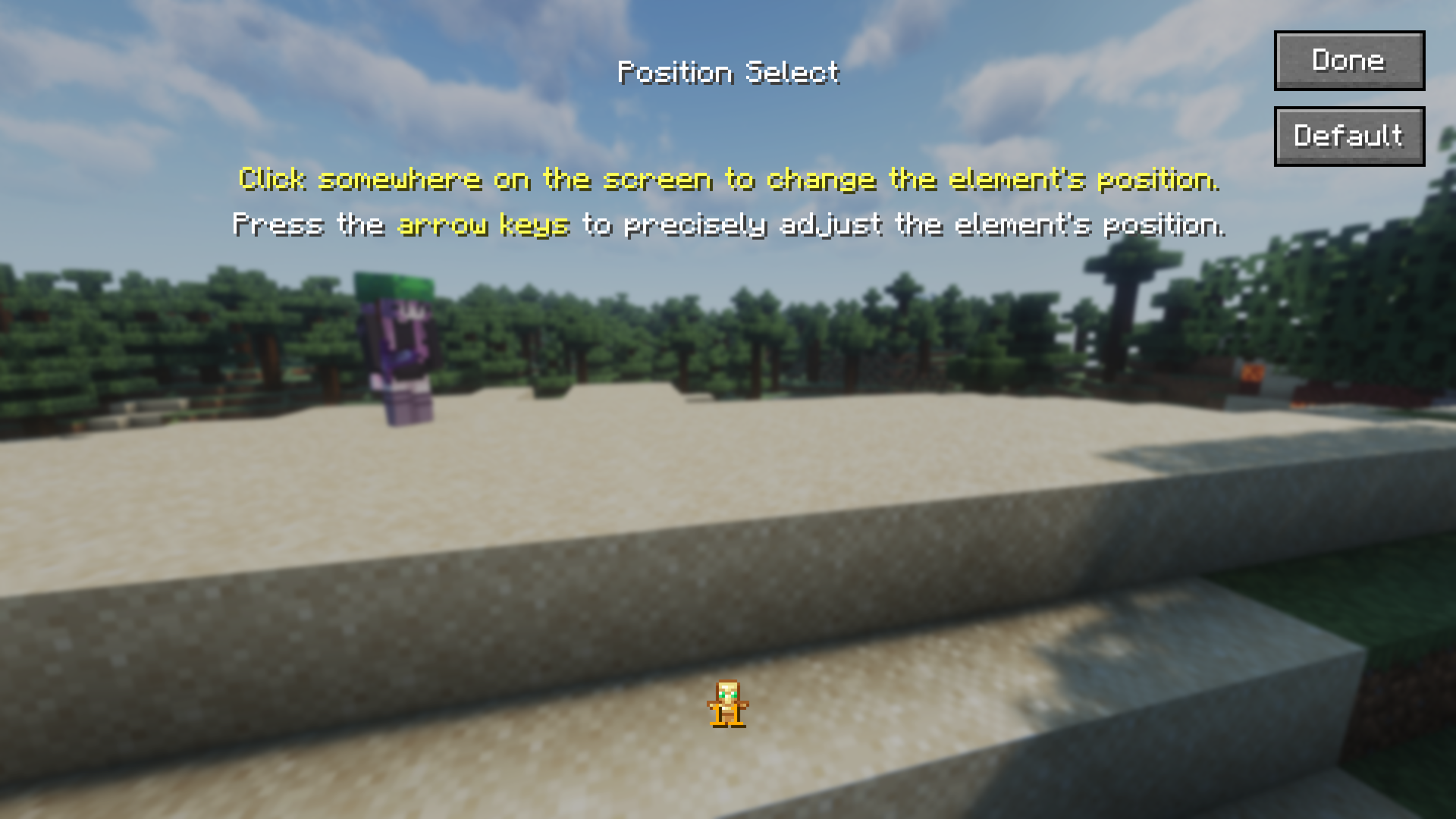

ukulib provides PositionSelectScreen, an abstract class that you can extend for a pretty configuration screen.

The only method which needs to be implemented is draw, which draws your element on the screen. When the user clicks clicks the "Default" button, x and y are set to -1 and drawDefault is called instead, which you can override to compute a default value for x and y, and then call draw with those values. You can see a real-world example in TotemCounter.

When your position selection screen is fully implemented, you can easily display it with a [ScreenOpenButton]:

MyModConfigScreen.java

// in case you just need to name your button "Position", ukulib already provides a translation key for it
new ScreenOpenButton("ukulib.position", parent -> new MyPositionSelectionScreen(parent, config))

Wide widgets

In the case of config screens with more than one column of widgets, you can force a widget to take up the entire width by calling .wide() on it:

new SimpleButton(/* ... */).wide()
